Downspouts

FOR TEXTURED WALL PANELS

24 gauge 4”x 5” downspouts and elbows. Finish with your selected texture color. The new textured downspouts will blend with the textured panel.

textured-wall-panel-downspout

24 gauge steel

10’ Downspout section

12’ Downspout straps

Elbows

24 standard colors; custom colors available

Drop sections

G-90 galvanized

Product Downloads:

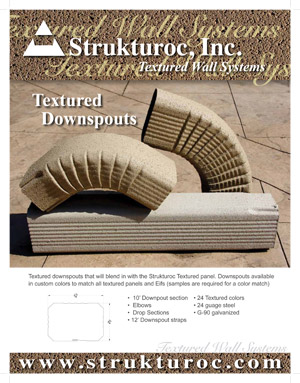

  • Textured Downspouts Information

FAQs

Listed below are the most commonly asked questions about our products.

20 gauge galvanized steel with epoxy baked primer embossed G-90. Our Signature series is a textured finish and our Classic series is a Kynar finish.

Any length from 14" to 30' (textured panel) and 14" to 32' (embossed panel).

16" wide.

24 standard with up to 1500 special colors available in our textured finish. The embossed comes in 6 standard colors, with custom colors available.

20 years for textured panels and 30 years for embossed panels.

12'-0" in length with custom lengths available.

Yes.

Yes, all trim and flashings are formed in-house and painted.

Base trim, J-Trim,Drip Trim,Corner Trim, Jamb Trim, Cap Trim.

Every job shipped is manufactured for a particular building. Generally the only cutting required is when panels overlap a window or door opening and at the end of a given elevation and gable ends.

Every job shipped will have a minimum of one cutting blade that is used in a 7 ¼" circular saw. It is used for the cross cut through the panel sides. An electric shear is used on the longer vertical cuts.

Our panels are easily stacked utilizing our standard z-flashing.

Every job shipped will have an accessory box containing rivets, touch-up paint, cutting blade, and installation guide.

Generally 3-4 weeks depending on the time of year.

Yes, since the panels are factory finished, installation can be facilitated upon arrival regardless of weather. No framing and plastic need be erected for heating such as with EIF's and other field applied stucco products.

Replacement is relatively easy with instructions provided within installation guide.

Yes, just contact your Customer Service Representative for specifications.

Yes, full profile size panels are available as well as the small 3" x 4" samples.

Not that comes to mind. Project types range from office to airports.

Yes, contact your Customer Service Representative for more details.

No, but we offer the WeatherWall System for that specific need.
