Same Panel, Turned Sideways, Completely Different Building
Horizontal steel wall panels are one of the easiest design moves available on a commercial project. The panel is the same panel. Same finish, same interlock, same colors, same warranty. All that changes is the direction it runs, and that one decision changes how the whole building reads.
Vertical panel pulls the eye up. It makes a building feel taller and more formal. Turn that panel on its side and you get long horizontal courses with a consistent shadow line running the length of the wall. The building reads wider, lower, and more grounded. On a long elevation that can be the difference between a wall and a facade.
Why Architects Reach for Horizontal
Most of the time it comes down to breaking up a big blank wall without adding a second material and a second trade to the job. A few of the ways we see it used:
- Full horizontal wrap. Distribution centers, retail, schools, and other long low buildings gain proportion when the banding runs with the building instead of against it.
- Mixed orientation. Horizontal across the main field, vertical at entries and towers. Same product, same color, two different rhythms. It draws attention exactly where you want it.

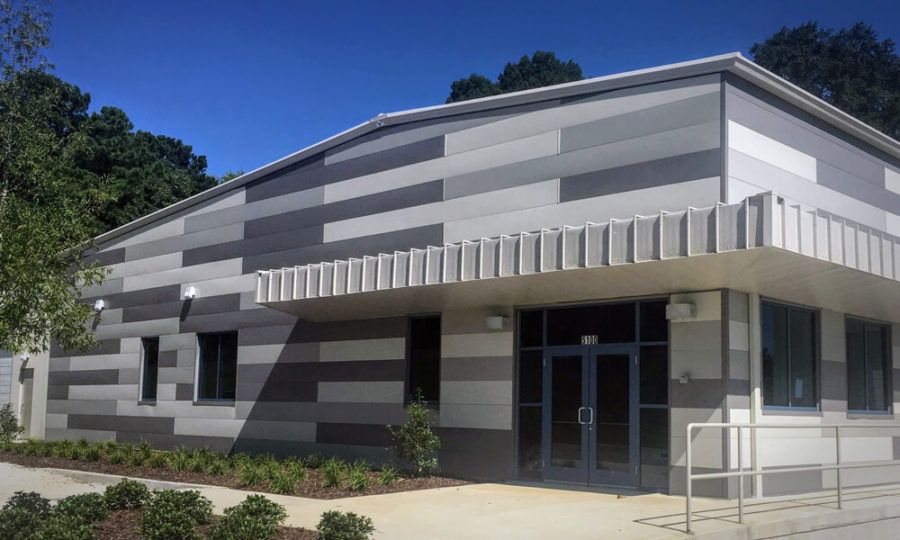

- Color banding. Because the panel is identical in either direction, you can stack colors horizontally and get a striped or graduated elevation with no change in system and no special detailing.

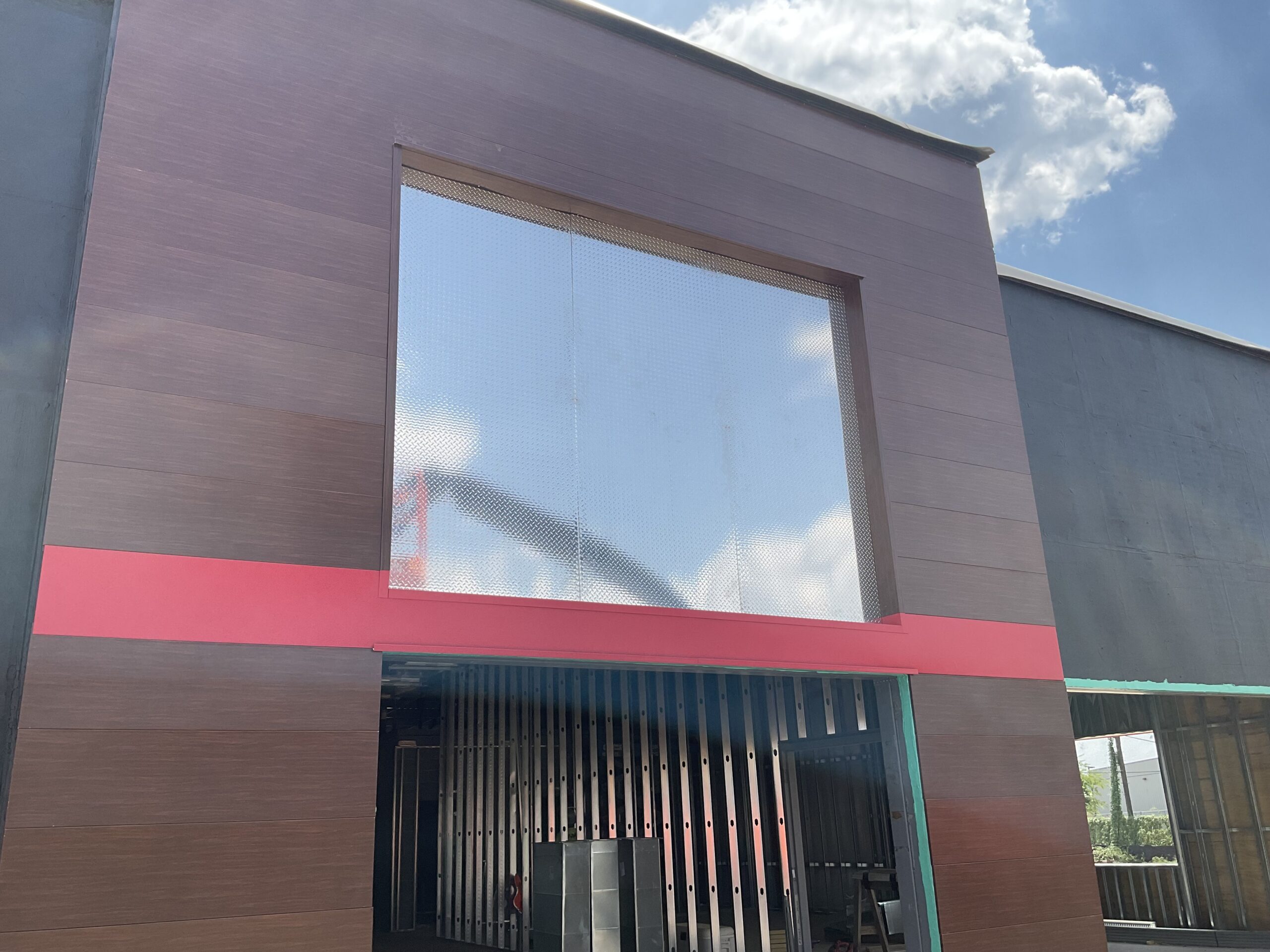

- Wainscot and base bands. A horizontal band at the bottom of a vertical wall looks deliberate and gives you a tough, easily replaced lower section where carts and trucks live.
- Carrying the line. Running the same panel and finish onto fascia and soffit keeps the design from stopping abruptly at the top of the wall.
It Is Not a Special Product
Horizontal application does not require a different panel, a different finish, or a longer lead time. Our steel wall panels are designed to run either way.
That means the whole palette stays open. Stucco texture on the Signature Series. Embossed Kynar on the Classic Series. Embossed acrylic on the Impression Series. Smooth print finish on the Design Series. Custom colors are available across the line, and we have matched brand colors for national accounts more than once.
It also means high wind projects are not off the table. Our Force Five panels carry the same locking clip system and the same approvals in a horizontal application, so a coastal building can get the horizontal look without giving up the wind performance the code requires.
What Changes Behind the Wall
The design side is simple. The framing side has one real difference worth knowing early.
On a vertical run, panels span horizontal supports. On a horizontal run, that flips, and the panel needs vertical supports to land on. That can be vertical hat channel over an existing structure, or a framed and sheathed wall. Either way it is a standard detail we have been building for years, not a custom engineering exercise.
The other item is insulation depth, which determines whether the wall needs hat channel behind the panel and how deep that channel should be. Getting that right up front keeps the finished wall flat and clean, which matters more on horizontal work because a long uninterrupted band shows every imperfection that light can find.
We publish the horizontal application details, including base and stacking trim conditions with and without hat channel, on our specs page. If you want to see exactly how it goes together before you commit, that is the place to start.
Talk to Us Early, Not Late
Horizontal application is one of those things that is easy when it is planned and expensive when it is discovered. Support spacing, insulation depth, trim selection, and where the courses land relative to windows and doors all connect to each other. Ten minutes on the phone at design development saves a lot of field problem-solving later.
See finished projects in our applications gallery, or reach out if you have a project in mind. We would be glad to be your vendor on it.
